Specifications

Nominal Voltage: 12.8V

Nominal Capacity: 8Ah 0.2C

Energy: 102Wh

Terminal Type: F2

Internal Resistance: 20≤mΩ

Cycle Life: more than 3000 times, DOD at 80%

Months of Self Discharge: ≤3.5% per month at 25℃

Charge Voltage: 14.6±0.2V

Discharge Cut-off Voltage: 10.0V

Rec. charging current: 2A

Max. Charge Current: 4A

Max. Continuous Current: 10A

Max. Pulse Current: 15A(＜3S)

Charge Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity

Discharge Temperature: -20 to 60℃ (-4 to 140℉) at 60±25% relative humidity

Storage Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity

Water Dust Resistance: IP55

Cell & Method: IFR26700, 4S2P

Case Material: ABS

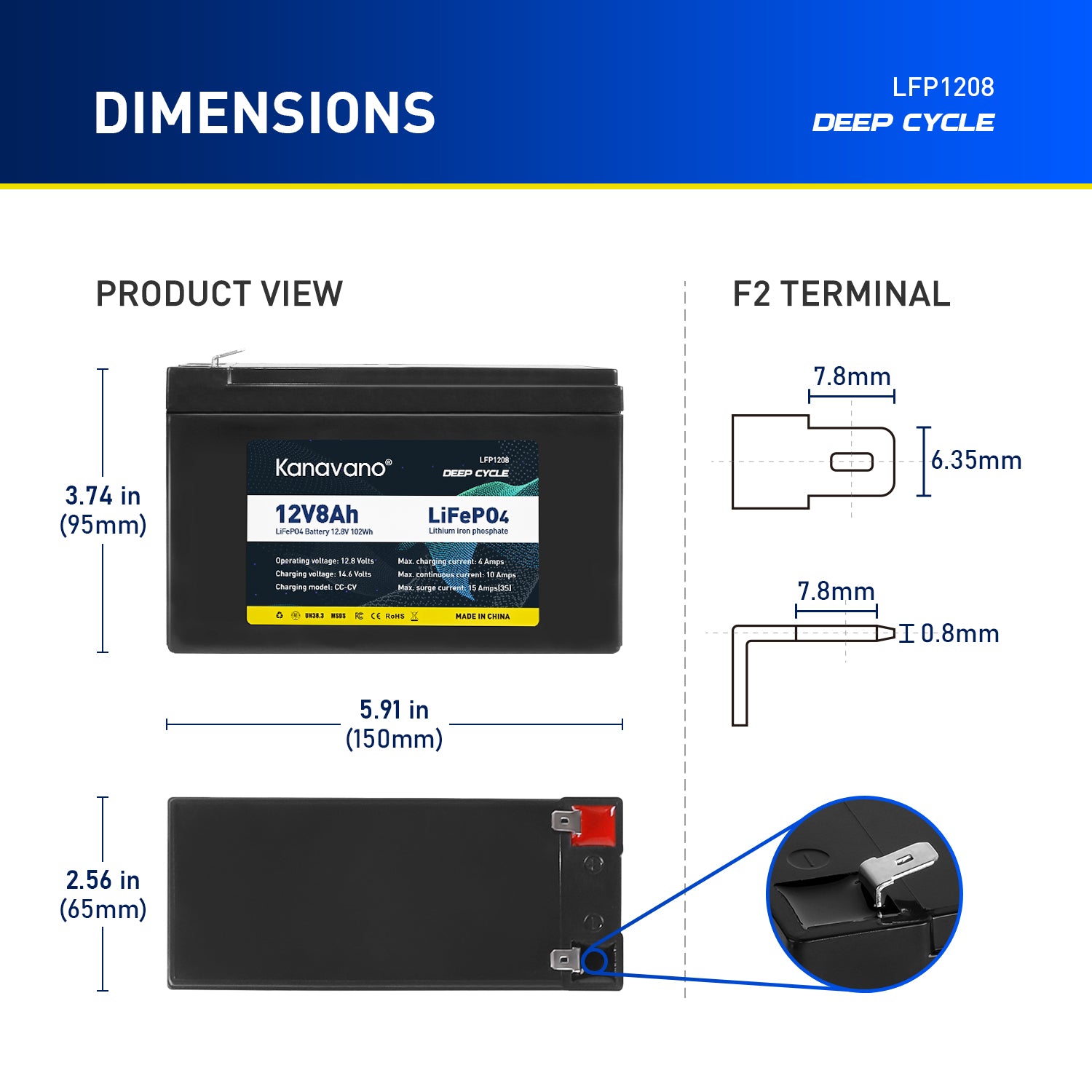

Dimension: 98*150*64 mm

Weight: Approx. 0.92 kg

Package List

12.8V 8Ah Lithium Iron Phosphate Battery * 1

14.6V 2A Lithium Iron Phosphate Battery Charger * 1 (EU/US/AU/UK)

User Manual * 1

Full Discharge

Can be fully discharged without risk and without loss of future capacity. Constant power throughout the discharge range.

Low Self Discharge Rate

Discharge to 80% after 8 months, can be left in storage for a longer period.

Greater Charge Efficiency

Fully charged in as low as 2 hours while AGM needs 8 hours.

Super safe lithium iron phosophate (LiFePO4) chemistry

Not hazardous and so is friendly both to the environment and not a health risk.

Applications

Electric vehicle, Electric Bicycle, Tricycle, scooter, golf trolley, cart, wheelchairs, Medical instrument, Solar supply system,solar panel, energy storage, electric tools, power tools, instruments, LED lighting devices, RC toys, inverter, household appliances and emergent device area, etc.

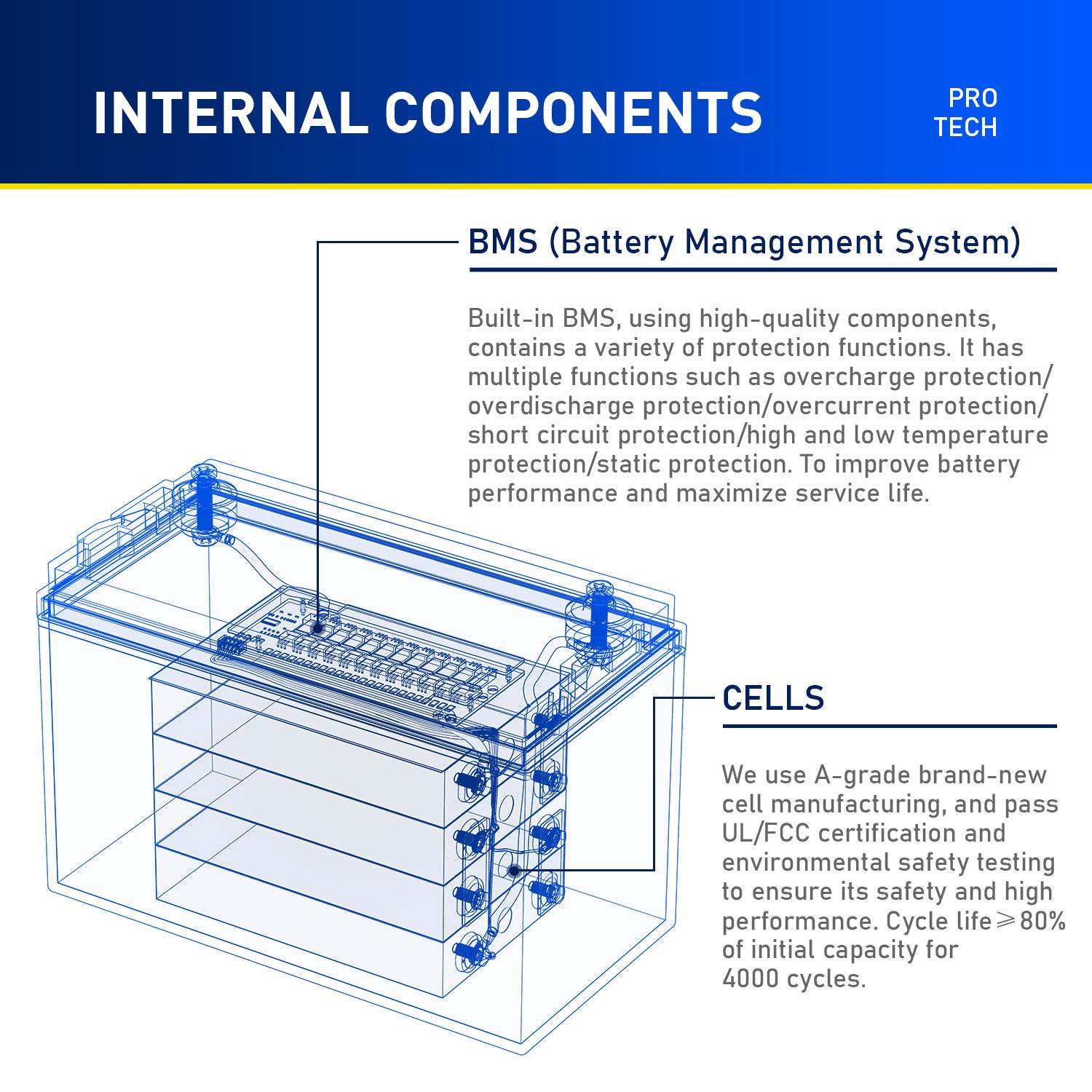

LiFePO4 battery have BMS built-in, same battery can connect in parallels, not series.

Notes

1. Check the specifications (Voltage, capacity, dimension, weight etc) and make sure it would fit and replace your old battery with no problem before purchase;

2. Please remove the caps on terminals before using.
